JHP320-B220 Airborne Dual - Sensor Electro Optical Infrared Camera Monitoring System
Description

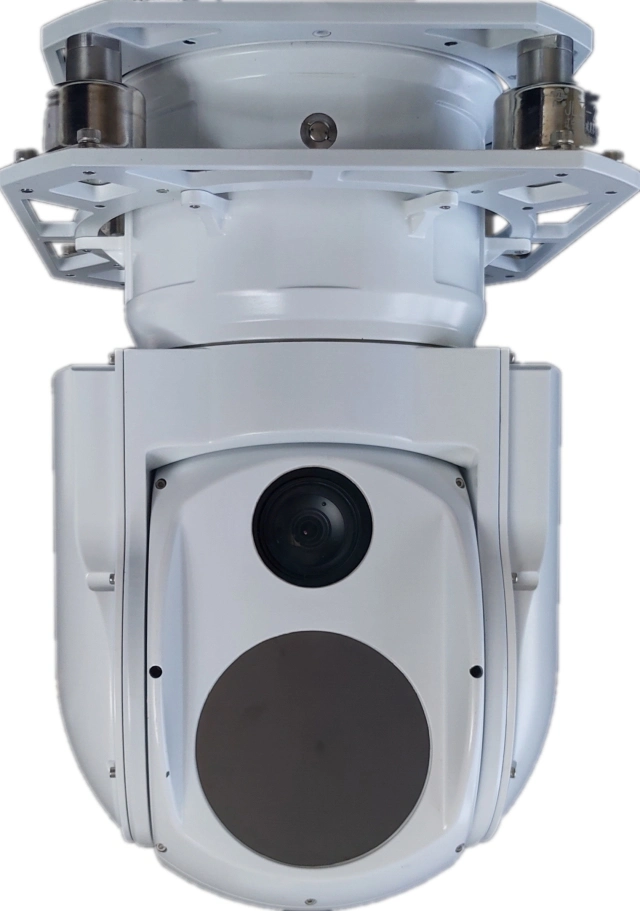

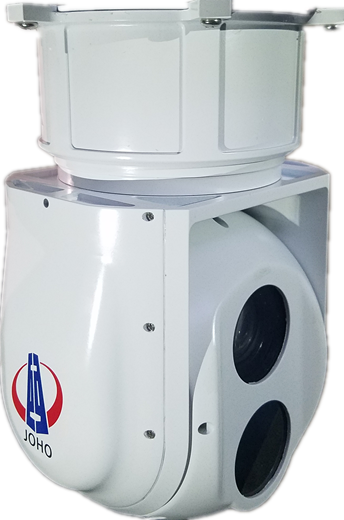

JHP320-B220 dual-sensor gimbal is small aircraft, aerostat and other airborne platforms for target surveillance, applicable on UAV,tracking and positioning. The system is an optical-mechanical-electrical integration, configured with30×continuous zoom HD 1080p day light camera,80mm uncooled thermal camera.
Features and Functions
1) Azimuth and elevation 2-axis stabilized platform, integrated with high accuracy gyro and servo control system, to realize full coverage reconnaissance, support both day and night observation.
2) Video tracking capability with manual locking and tracking;
3) Small size, light weight, and compact structure, strong carrier adaptability, low consumption, and high cost-effectiveness.
4) High accuracy calibration to ensure the alignment of thermal camera and daylight camera.
5) Capable of data return such as working mode, azimuth angle, elevation angle,etc.
Technical Specification
| THERMAL CAMERA | |
| Detector | 640*512 Uncooled FPA |
| Spectral band | 8μm~14μm |
| Resolution | 17mm x 17mm |
| Focal length | 80mm |
| DAY LIGHT CAMERA | |
| Detector | 1/2.8" CMOS |
| Focal length | 4.3~129mm, 30x |
| Resolution | 1920×1080 |
| SERVO | |
| Stabilization | ≤0.5mrad(1σ) |
| Turret direction range | Azimuth:360° continuous; Elevation:+20°~-90° (Customizable) |
| TURRET MAXIMUM ANGLE SPEED | |
| Azimuth | ≥30°/s |
| Pitch | ≥30°/s |
| INTERFACE | |
| Video Out | HDMI |
| Communication | RS232 |
| ENVIRONMENTAL | |
| Operating temperature range | -20ºC ~ +50ºC |
| Storage temperature range | -30ºC ~ +60ºC |
| Tracking | |
| Tracking speed | ≥2.5FOV/S |
| Min tracking contrast ratio | 5% |
| Dynamic tracking accuracy | superior to 1mrad |
| POWER | |
| Power Supply | DC 12V |
| Power Consumption | ≤120W (steady); ≤360W(peak) | |
| PHYSICAL | ||
| Dimension Turret | ≤ Φ240× 350mm | |
| Turret Weight | ≤ 10kg | |
| Color | Customizable | |
| Performance (Theoretic Value under Johnson DRI) | ||
| Vehicle (2.3×2.3m) | Human (1.7×0.5m) | |
| Detection | 5400m | 1100m |
| Recognition | 1800m | 400m |
| Identification | 900m | 200m |
